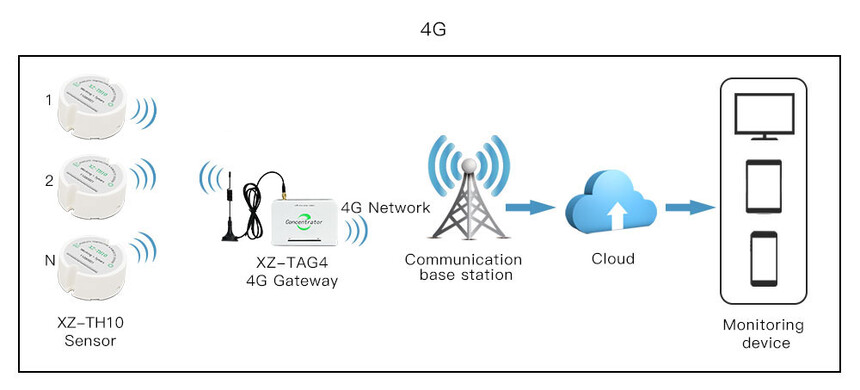

XZ-TH10 wireless rf temperature humidity sensor is a low-power wireless temperature and humidity measuring instrument,can be also made with a probe.It consists of temperature and humidity sensor, signal processing circuit, rf communication module and battery.Working with our wireless gateway can realize remote temperature and humidity data acquisition. Wireless gateway sends data to a third party data acquisition equipment by using Serial/Network/4G/RS485 Modbus way.We also provide free software and cloud server for remote monitoring.

XZ-TH10 uses 14250 lithium battery, battery life over 5 years, with small size, low power consumption, high cost performance characteristics, widely used in supermarkets, refrigerators, small single-body warehouse, cold chain and other scenes.


Specification


General Parameters
Transmitting Power:<10dBm
Receiving Current:< 20mA
Sensitivity:< -112dBm
Average power consumption:< 15uA
Transmitting Current :<40mA
Battery Life:5 years@1000mAH
Transmission Distance: 500meters(LOS)
Power supply:1pc ER14250 3.6V (Li- -SOCI2) battery (replaceable and included)
Operating Temperature:-40°C~80°C
Working Frequency:433MHz (868/915settable in factory)
Sensor Parameters
Temperature Range:-40℃~80℃
Temperature Accuracy:±0.3℃(0℃~65℃)& < ±1℃(<-0℃,>65℃)
Humidity Range:0-100%RH
Humidity Accuracy:±3%(10%~90%)& < ±4.5%(<10%,>90%)
Transmission Interval:5mins default, 1 ~ 60mins settable by user



Software &Cloud Server for Remote Monitoring

We provide free software and cloud server for remote monitoring,and we can also provide protocols for customers to build their own platform.






             Download Use Manual

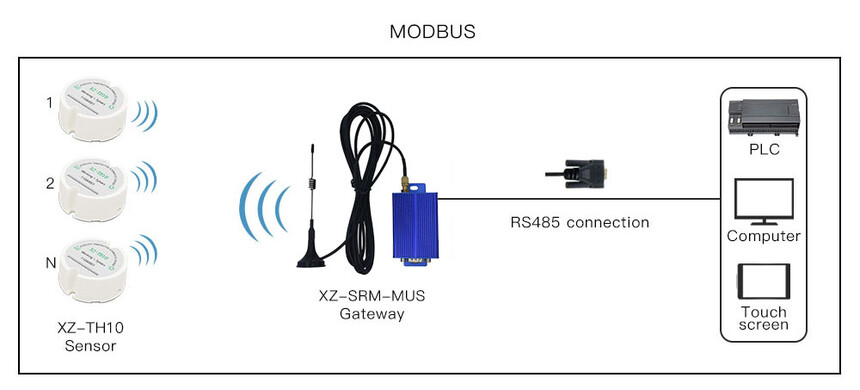

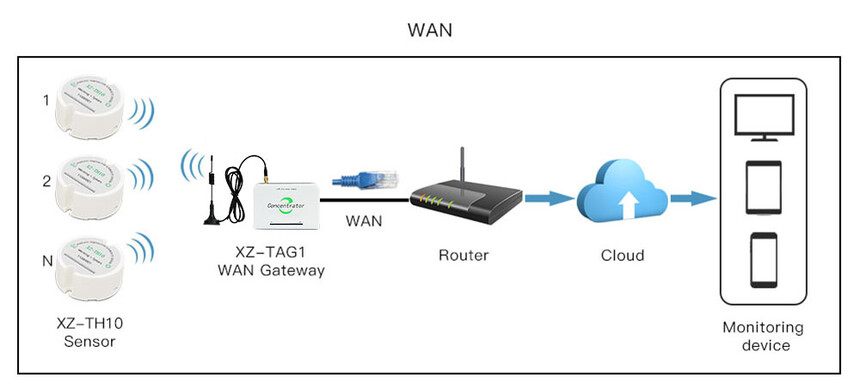

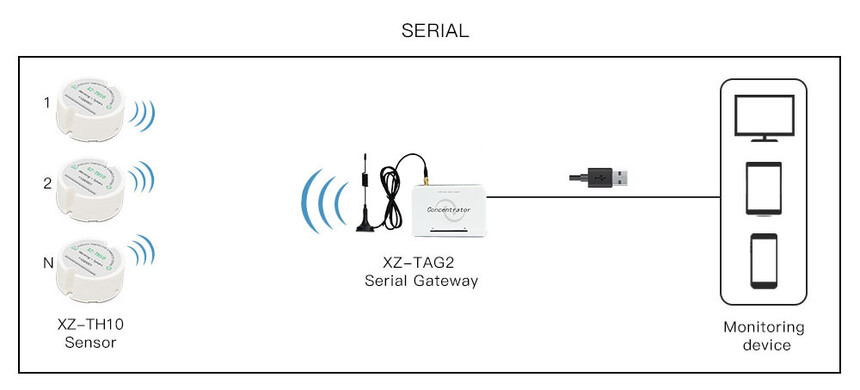

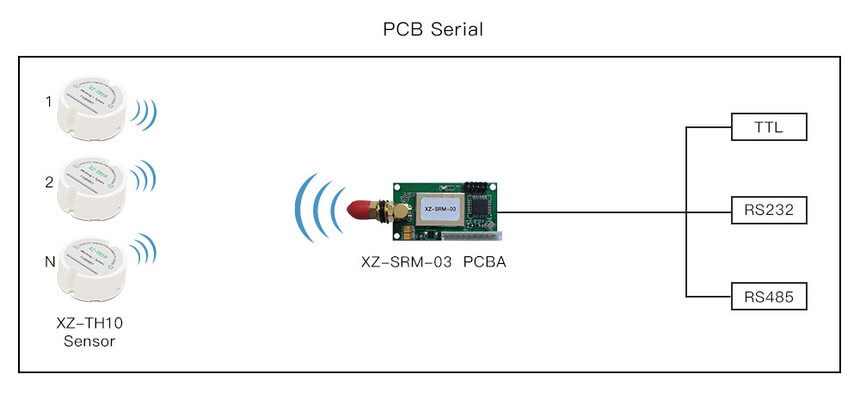

The sensor needs to be configured with a gateway(concentrator). You can select one type of them as required.







●environmental and meteorological monitoring                       ●medical and health care

●storage and cold-chain transportation                                    ●sincubator, refrigerators

●small single-body warehouse,supermarket                           ●greenhouse, beekeeping base

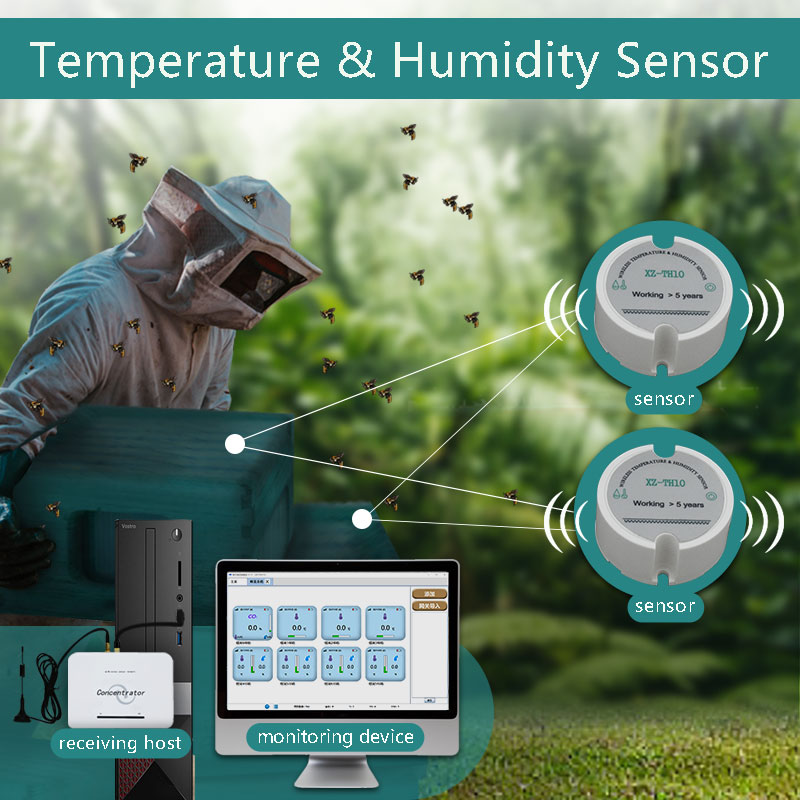

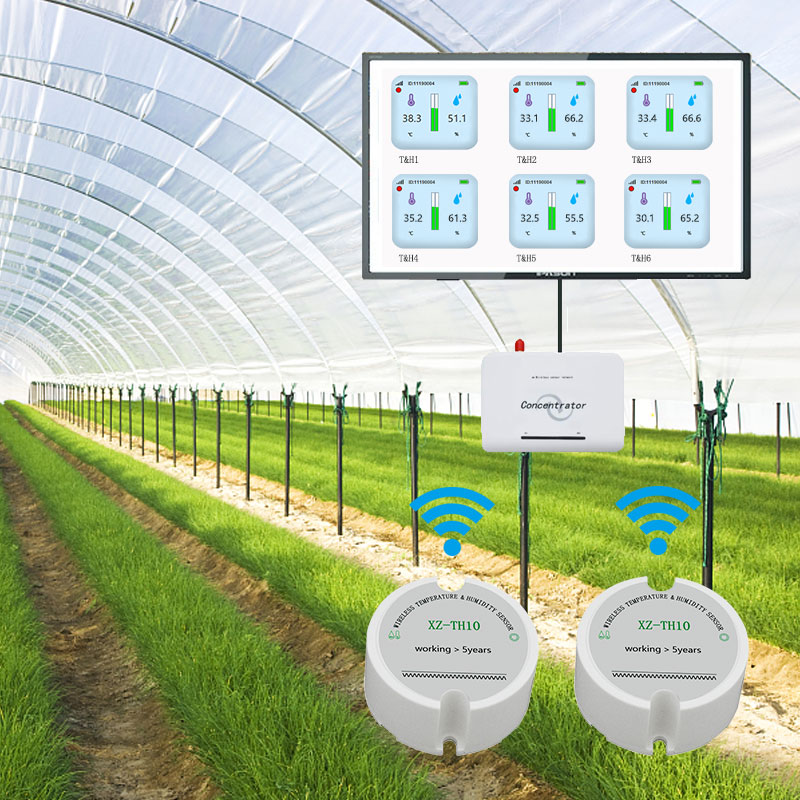

1699258377827184.jpg      1699258378716640.jpg

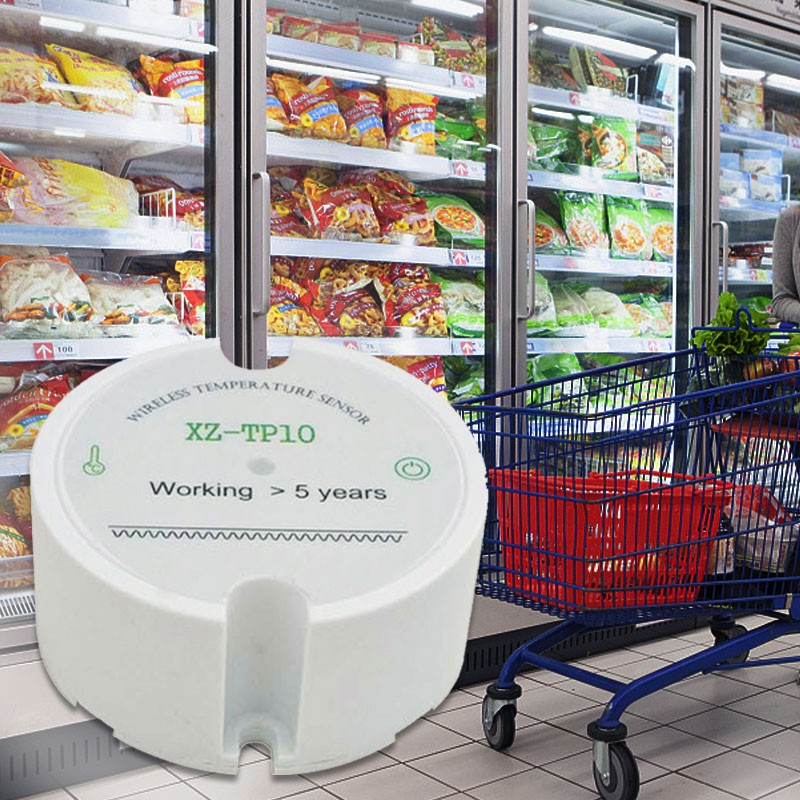

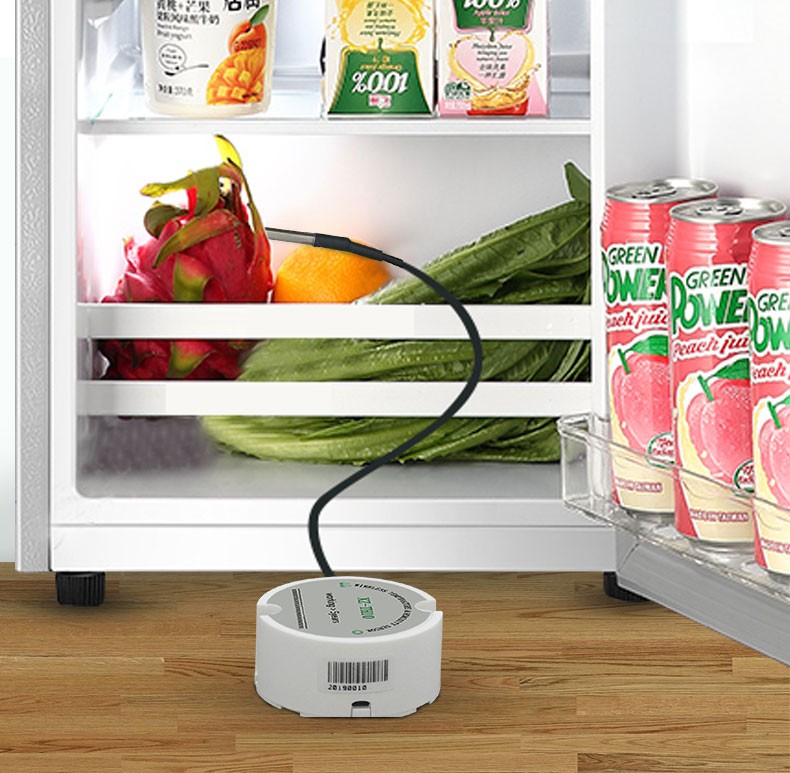

1699258379752012.jpg     1699258379793617.jpg
