详细说明

XZ-TAG1

收藏
  • Discription
  • Select one Sensor
  • Application

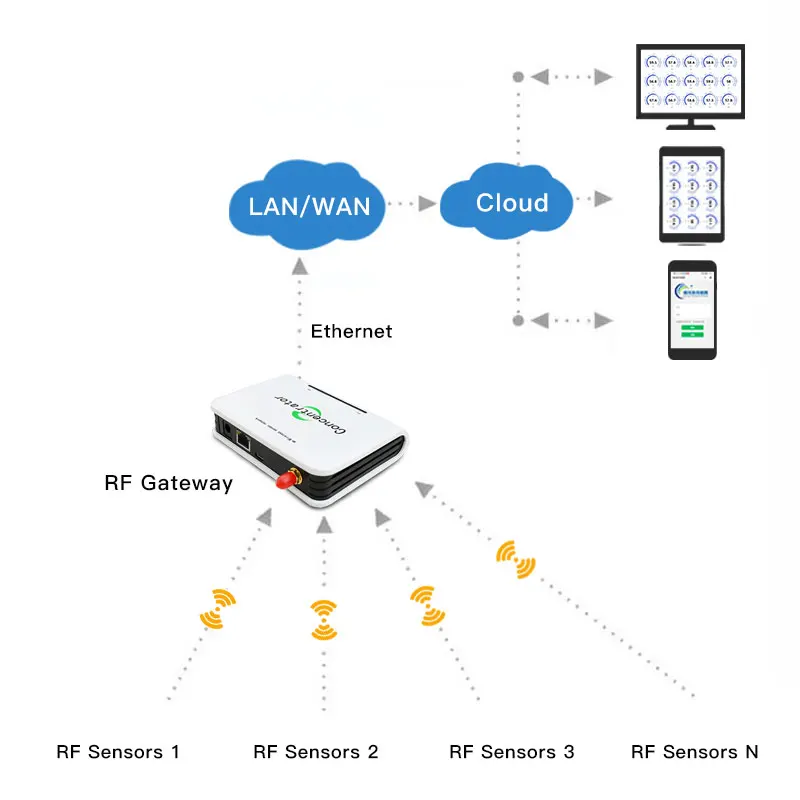

XZ-TAG1 with local network port transmission, external 5V DC power supply, using the browser to configure remote IP, port or domain name, local fixed IP or dynamic IP; We can use our Galaxy platform software, which can provide CS stand-alone version and BS cloud service version. The transmission protocol can also be provided, and users can build their own platform.

One XZ-TAG1 can connect 100 TAG sensors.


Specification

Basic Parameters
Network parameters
Wireless parameters
Working Temperature:-40~80℃
Wired network: RJ45
Working frequency:433MHz default,868/915mhz customized
Working Voltage: DC 5V @1A
TCP/IP communication interface Socket
Receiving sensitivity: -116dBm
Dimensions:110*80*26(mm)
Fixed IP and server domain name resolution
Transmission distance:>500m(LOS)


1699414728212096.jpg          1699414734992847.jpg
