XZ-SRM-MUS

收藏
  • Discription
  • Select one Sensor
  • Application

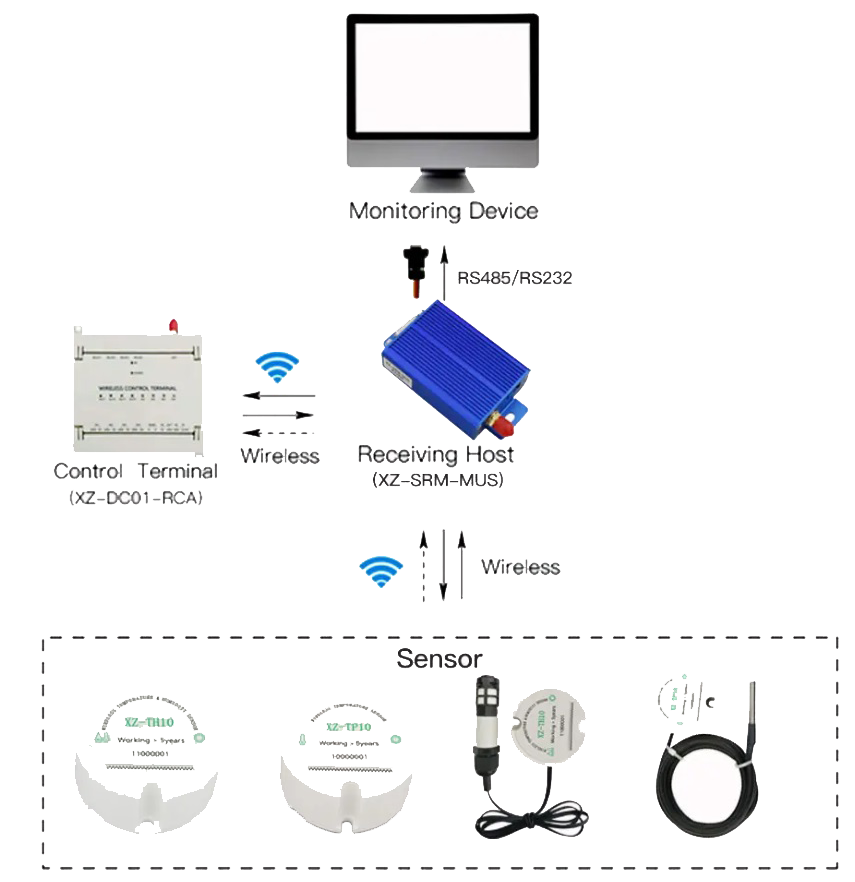

XZ-SRM-MUS is a modbus gateway of our wireless sensor.

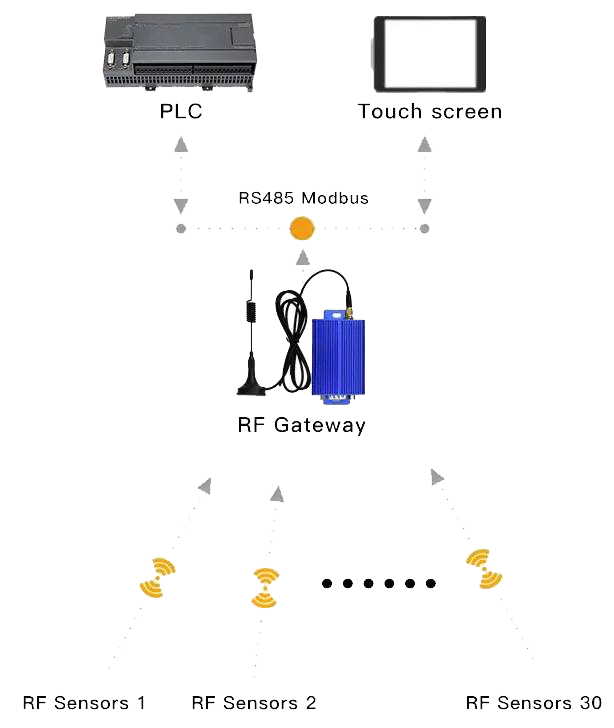

XZ-SRM-MUS can receive sensor data and store it into the corresponding configured space then read out from the serial port through the MODBUS protocol.

Users can use XZ-Modbus-Tool software to configure, read and control the sensors.


Specification

Wireless parametersBasic Parameters
Working frequency:470MHz default,433MHz/
/868MHz/915MHz customized
Working voltage:5V
Transmitting power:<10dBm
Transmission distance:>500m(Line of sight）

Sensitivity:<-112dBm
Working temperature:-40℃～+80℃
Transmitting current:<60mA
Interface: 9600bps，8N1， RS485
Receiving current:<40mA





1699424214477805.png  1699424215440750.png  1699424216509274.png  1699424222141999.png  1699424236857345.png

modbus 2透明.png       1699500579266720.png
