XZ-DS02-CO2C

进入
收藏
  • Discription
  • Select one Gateway
  • Application

XZ-DS02-CO2C is a built-in high concentration CO2 sensor with a measurement range of 0-10000ppm. Based on Lora transmission wireless sensor, it can achieve full signal coverage for a medium-sized community or an industrial area. Working temperature: -40-80 ℃, battery replacement cycle>1 year. Main application scenarios: agricultural greenhouses and basements.


XZ-DS02-CO2C working status indication and description

XZ-DS02-CO2CWorking Process

XZ-DS02-CO2Cswitches to different modes according to using way:

Sleeping mode:Sensor no work, no transmission, and sleeping with low consumption

Starting mode: Light sensing triggering,


Trigger 3 times continuously within 10S,after triggering successfully at the 3rd time red light fast blinks 3 times, it means starting successfully.

(Triggering way: hand holds light-sensitive part 1~2S,loosen and red light blinks once)

Notice:please don’t trigger it in dark light, instead using lens hood under hard light

Triggering mode:trigger once,detect sensor and send signal, transmission interval of sensor can be set by user.

Normal Mode:periodically detect sensor and send signal


image.png            image.png


Specification


CO2 Range1

400-2000ppm

CO2 Accuracy

±(50ppm + 5% of reading)

CO2 Range2

400-5000ppm

CO2 Accuracy

±(40ppm + 5% of reading)

Temperature Range

-20~60°C

Temperature Accuracy

<±0.3°C(0~60°C)&

<±1°C(<-20~0°C)

Humidity Range

0-100%

Humidity Accuracy

<±3%(10-90%)& <±4.5%(<10%,>90%)

Test pressure conditions

950~1050mbar

Acquisition cycle

5~240mins settable by user(30mins default)

Battery life-span

12months@2700mAH 30mins(14505 Li-SOCI2 battery, replaceable)

Transmit Power

<17dBm

Receive Sensitivity

<-136dBm

Transmit Current

<120mA

Receive Current

<20mA

Transmission Distance

>5KM(LOS)

Working Temperature

0~50°C

Working Frequency

433MHz /480MHz /868MHz /915MHz /925MHz customized

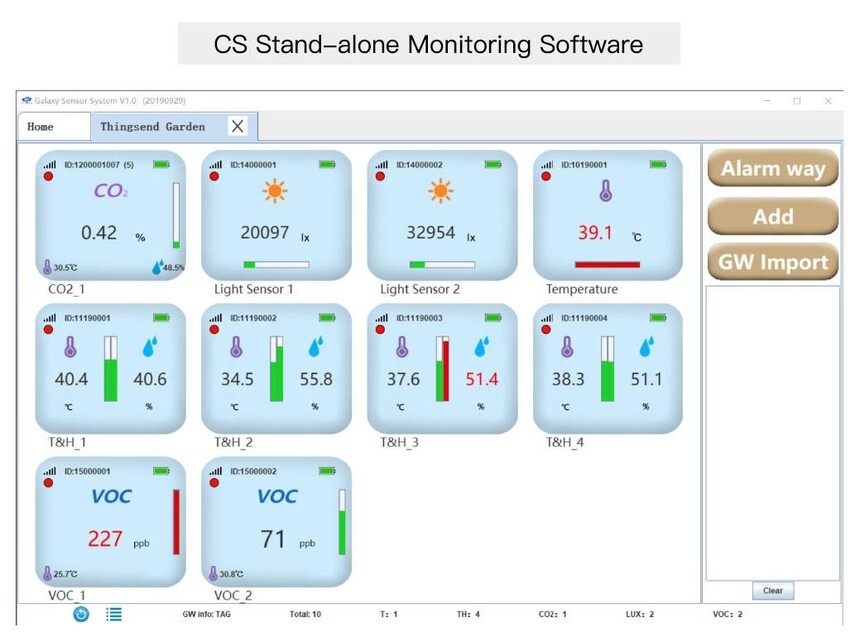

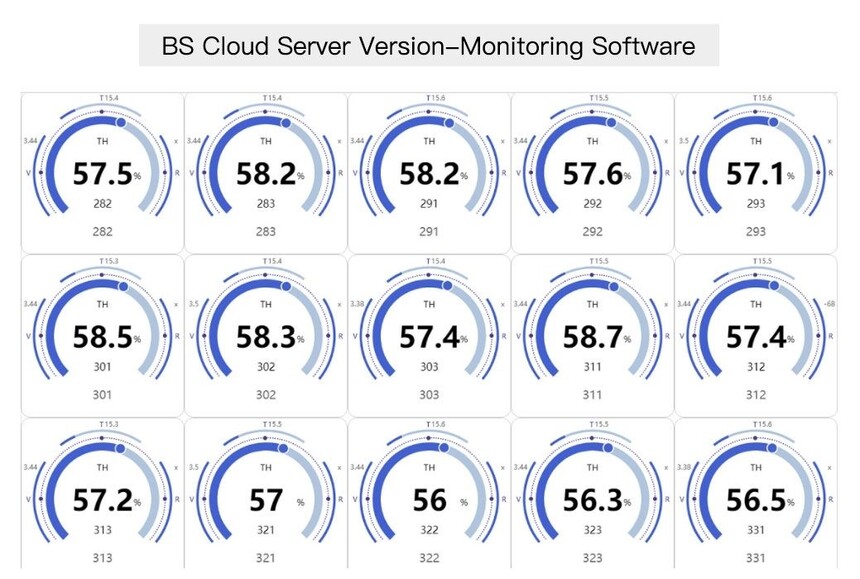

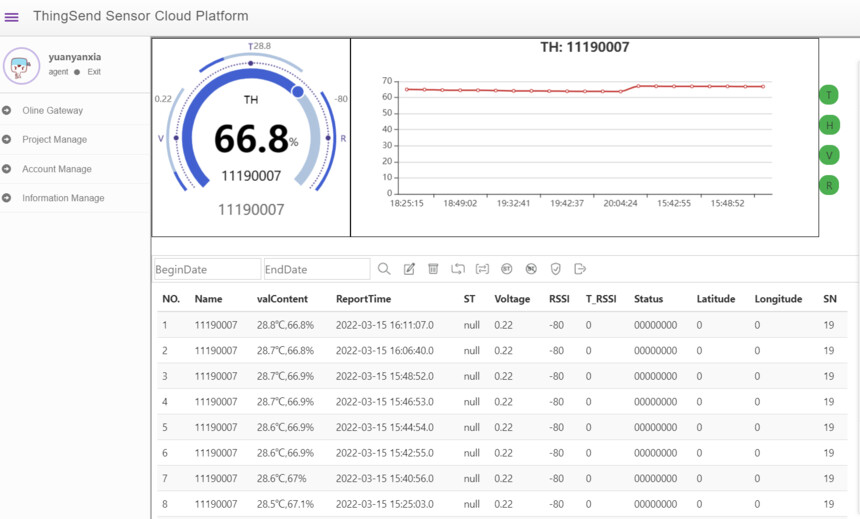

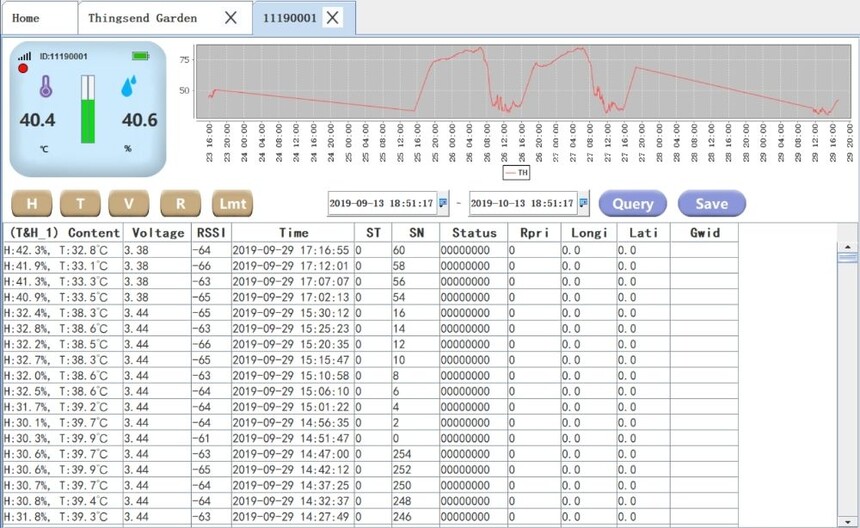

Software &Cloud Server for Remote Monitoring

We provide free software and cloud server for remote monitoring,and we can also provide protocols for customers to build their own platform.







             Usemanual Download  XZ-DS02-CO2C  RV10.pdf

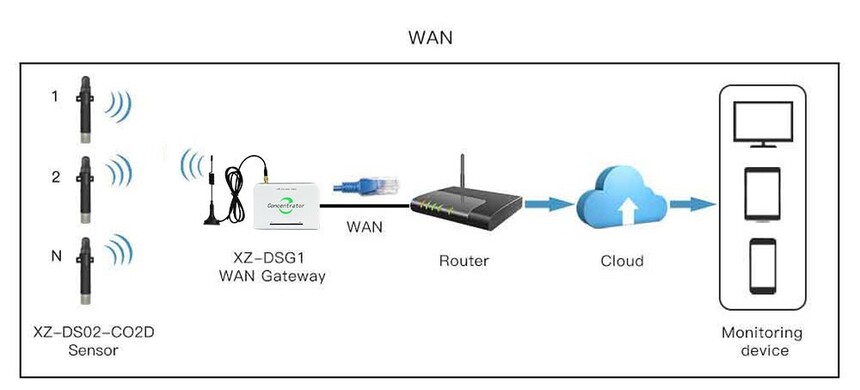

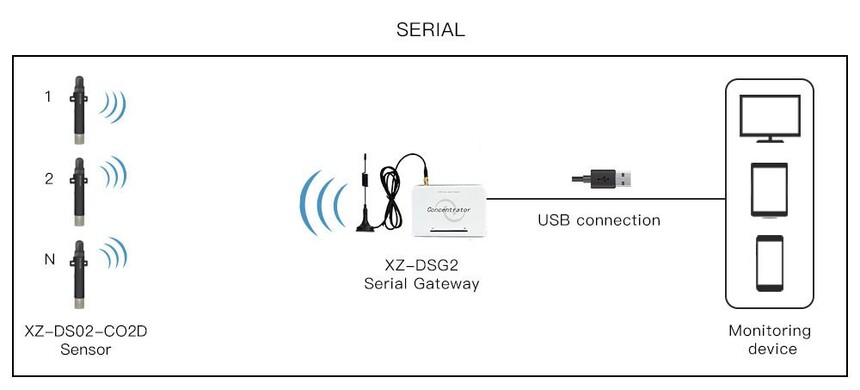

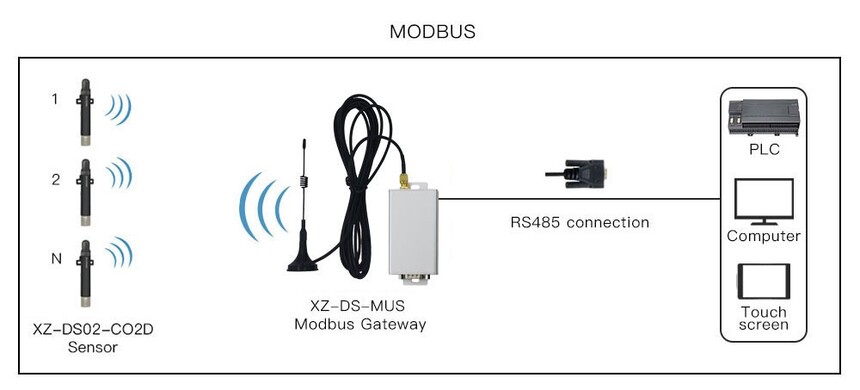

The sensor needs to be configured with a gateway(concentrator). You can select one type of them as required.

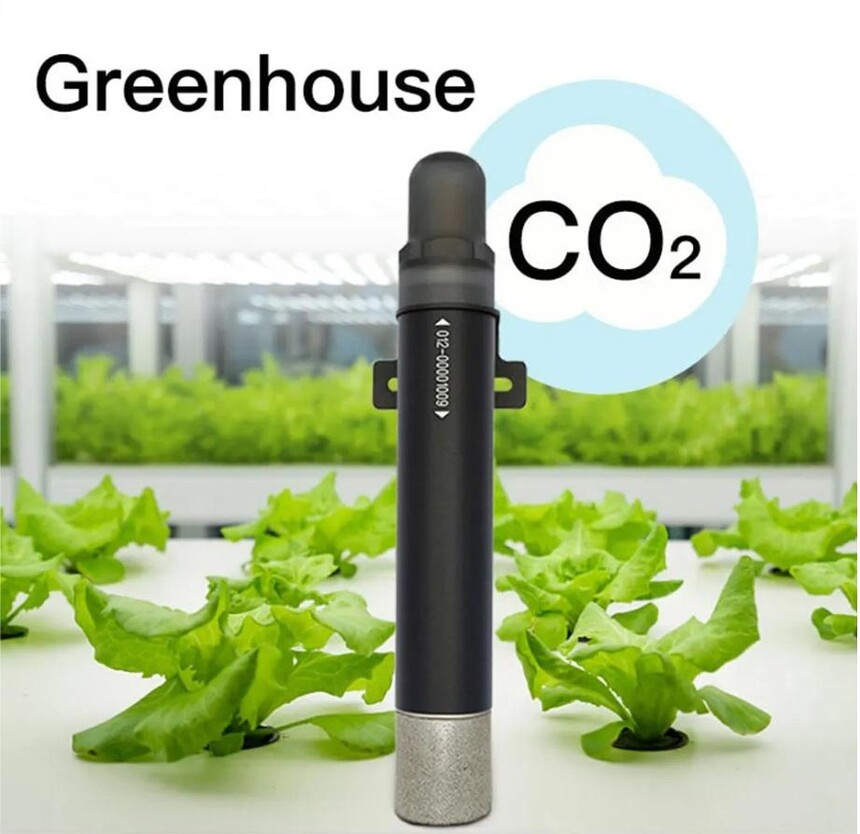

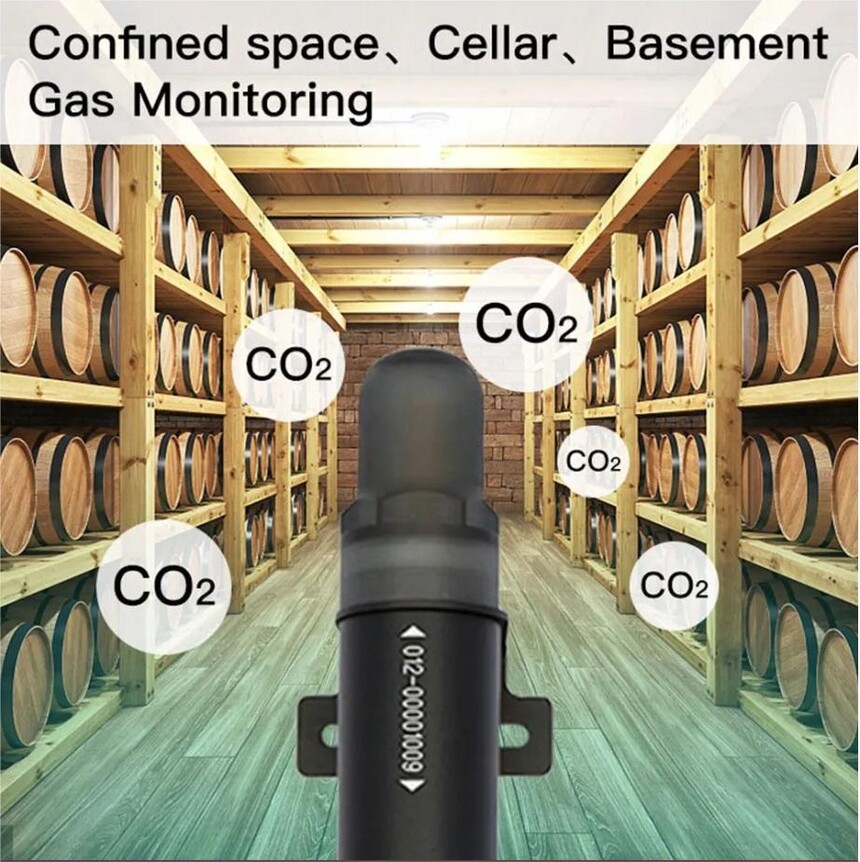

●environmental and meteorological monitoring                    ●agriculture such as greenhouse

●constant temperature and humidity production workshop  ●medical and health care

●storage and transportation                                                    ●refrigeration and cold chain


1698644819223784.jpg     1698644895846192.jpg
