In this dynamic and ever-changing world, people have increasingly high demands for their lives and production. The application of wireless sensor technology is transforming our way of life, bringing us smarter and safer environments. The XZ-DSD series of wireless sensor products not only possess high-precision measurement capabilities but also feature stable and reliable data transmission and real-time monitoring functions. Whether it’s home security, industrial production, or commercial environments, they can meet your sensing needs.

XZ-DSD01-CO2A/C  is  integrated the CO2, Temperature, Humidity and Air pressure wireless sensor, based on Lora private protocol.


 Key Setting Function



Specification

Sensor Parameters

Name

Model No.

Sensor

Range

Accuracy

CO

XZ-DSD1- CO

CO

01000ppm

±5%

General Parameters

XZ-DSD General Parameters

Frequency

470MHz、868MHZ、915MHz

Communication

Lora private protocol

Transmitting Power

<17dBm

Transmitting Current

<120mA

Transmission Distance

<3KM (LOS)

Power supply

3pcs AA batteries

Battery Lifetime

Name

Model No.

Lifetime

CO

XZ-DSD1- CO

>6months@30mins3pcs AA batteries2000mAH)

Software &Cloud Server for Remote Monitoring

We provide free software and cloud server for remote monitoring,and we can also provide protocols for customers to build their own platform.







Usemanual Download


The sensor needs to be configured with a gateway(concentrator). You can select one type of them as required.

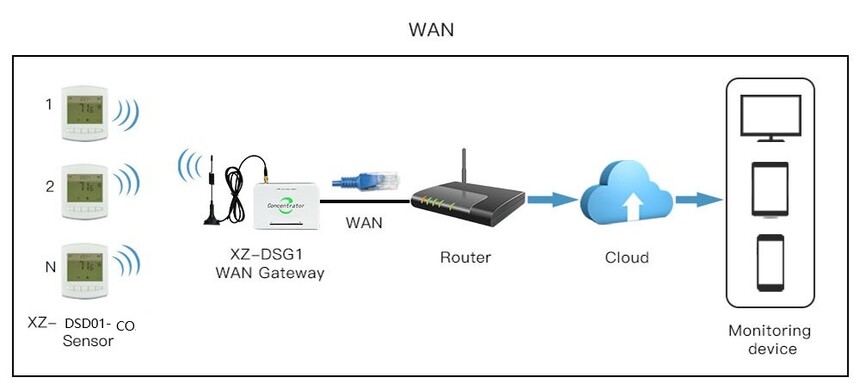

(XZ-DSG1)XZ-DSD01-CO WAN.jpg

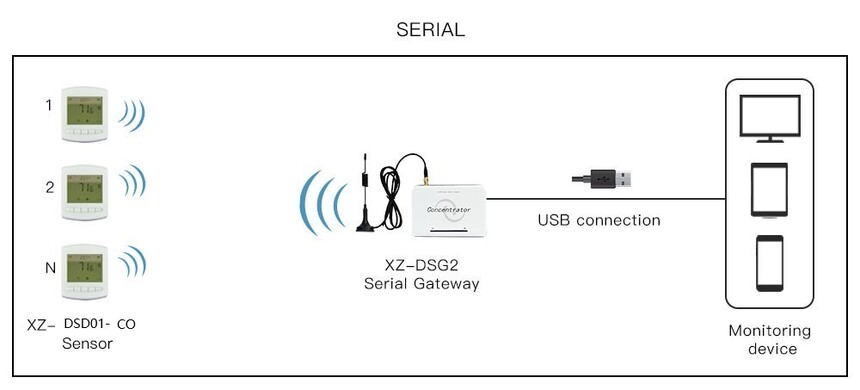

(XZ-DSG2)XZ-DSD01-CO Serial.jpg

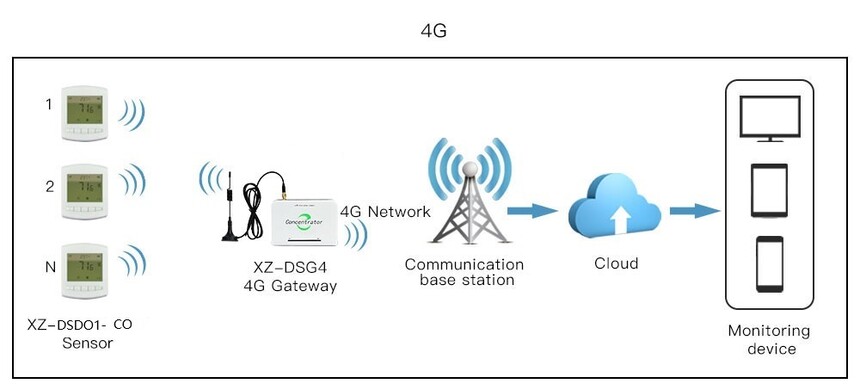

(XZ-DSG4)XZ-DSD01-CO 4G.jpg

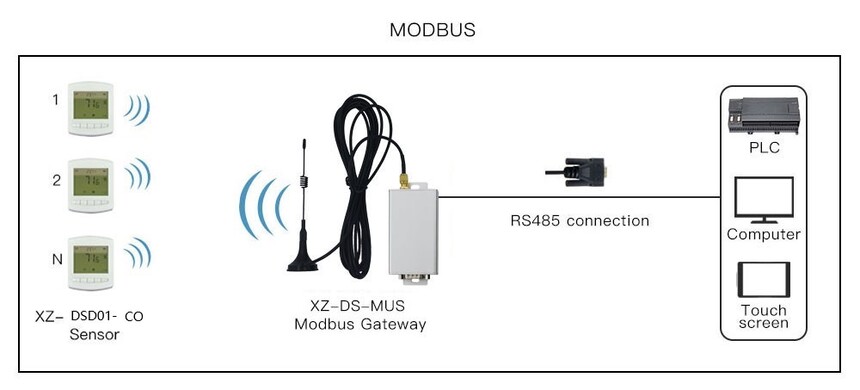

(XZ-DSG-MUS)XZ-DSD01-CO MUS.jpg


● Smart home, smart office, smart factory

● Laboratory, incubator, bright kitchen stove

● Cold storage cold chain, planting and breeding

● Libraries, museums, campuses

● Industrial sites and other fields

1698659144285181.jpg        1698659145340990.jpg

1698659146768276.jpg          1698659147341530.jpg
