详细说明

XZ-DSG1

收藏
  • Discription
  • Select one Sensor
  • Application

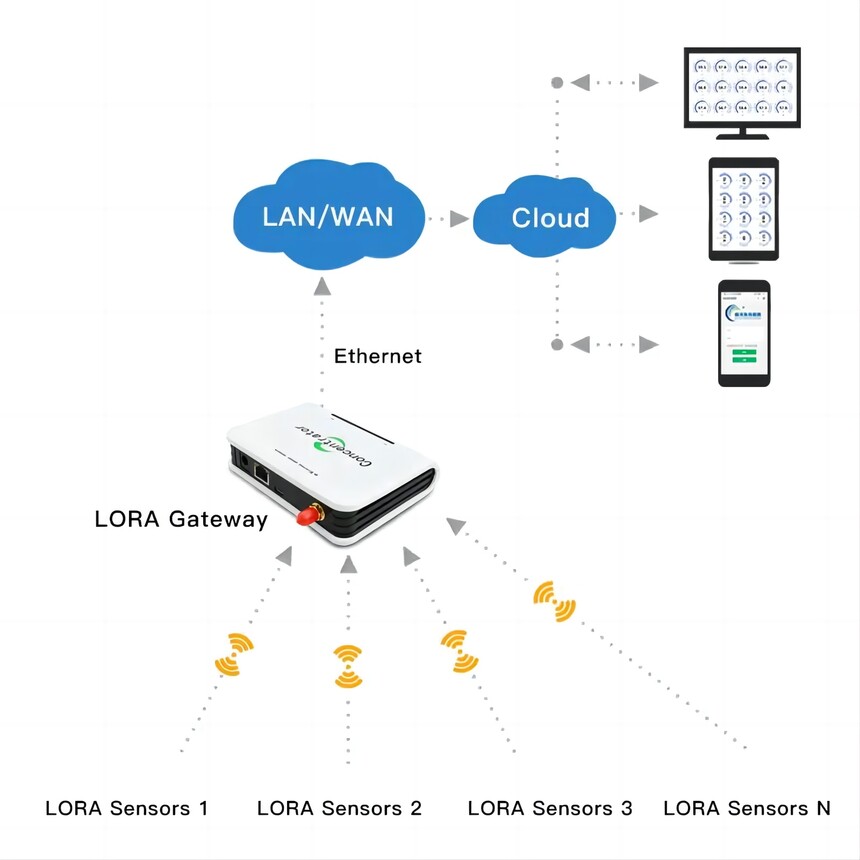

XZ-DSG1 is a concentrator with local network port transmission data, external 5V DC power supply, using the browser to configure remote IP, port or domain name, local fixed IP or dynamic IP; We can use our Galaxy platform software, which can provide CS stand-alone version and BS cloud service version. The transmission protocol can also be provided, and users can build their own platform.


Specification

Network parameters
Wireless parameters
Wired network: RJ45
Working frequency:470MHz(433/868/915mhz customized)
TCP/IP communication interface Socket
Receiving sensitivity: -136dBm
Fixed IP and server domain name resolution
Transmission distance:>5KM(LOS)
Working Temperature:-40~80℃
Working Voltage: DC 5V @1A
Dimensions:110*80*26(mm)


1699501011298008.jpg  1699501015895726.jpg

1699501017607379.jpg  1699501023151405.jpg
