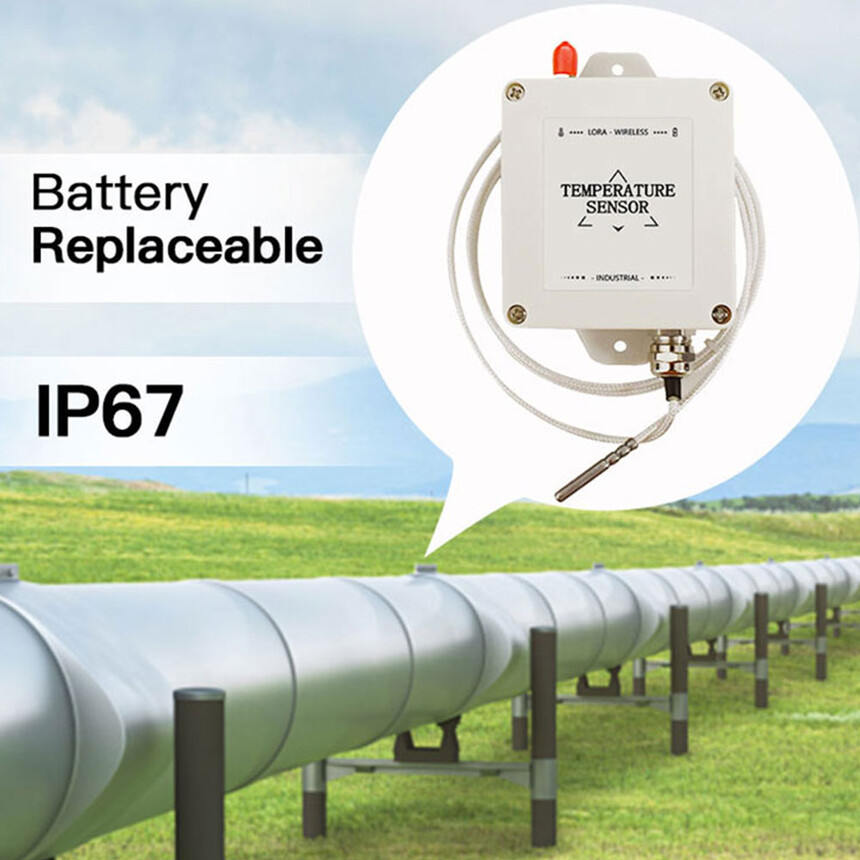

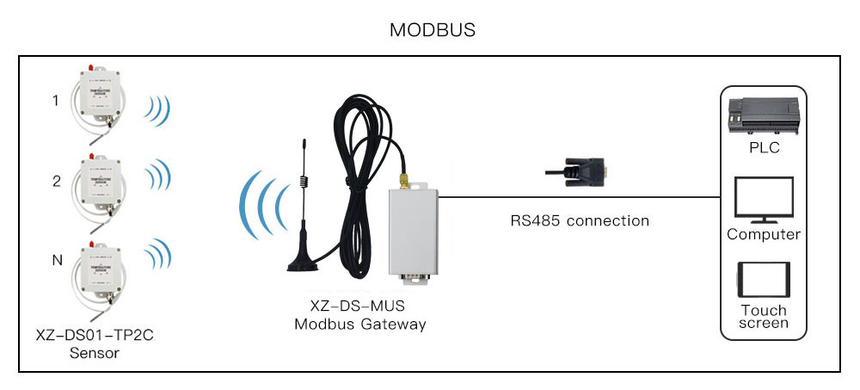

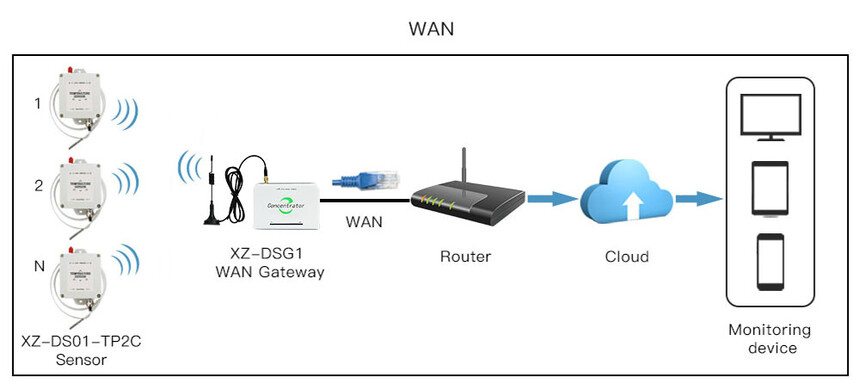

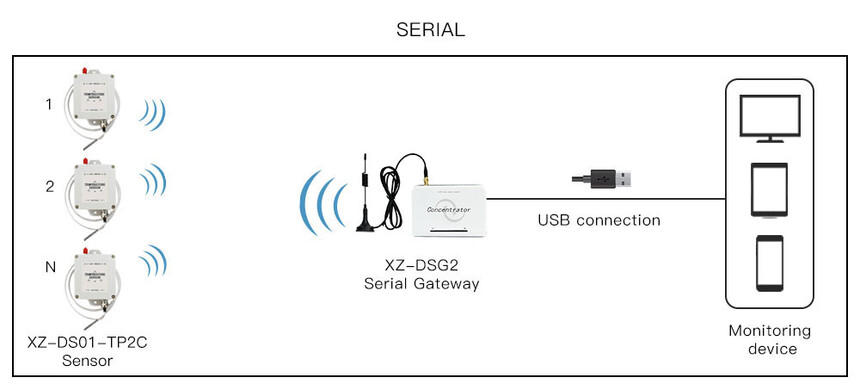

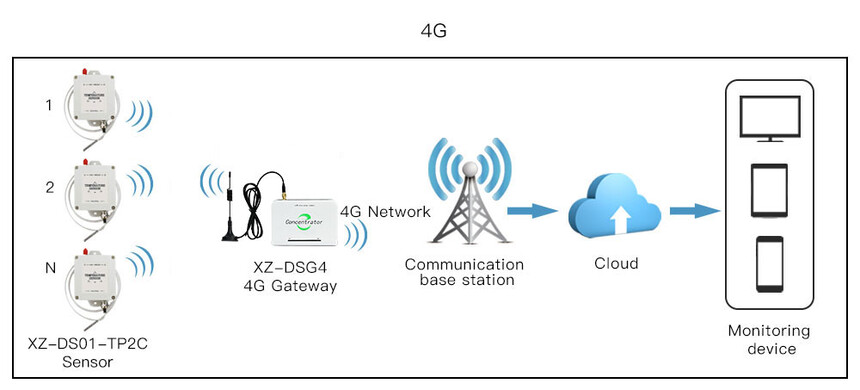

XZ-DS01-TP2C-1 lora wireless temperature sensor with PT100 temperature probe is an industrial grade wireless temperature measuring instrument. Probe temperature range -200°C ~0°C. It consists of temperature sensor, signal processing circuit, lora communication module and battery.The probe can be customized to different temperature probe.Working Working with our wireless gateway can realize remote temperature data acquisition. Wireless gateway sends data to a third party data acquisition equipment by using USB serial/Network/4G/RS485 Modbus way, each gateway can work with more than 100pcs sensors. We support free software and cloud server and also support the protocol for customer redevelop. Specification

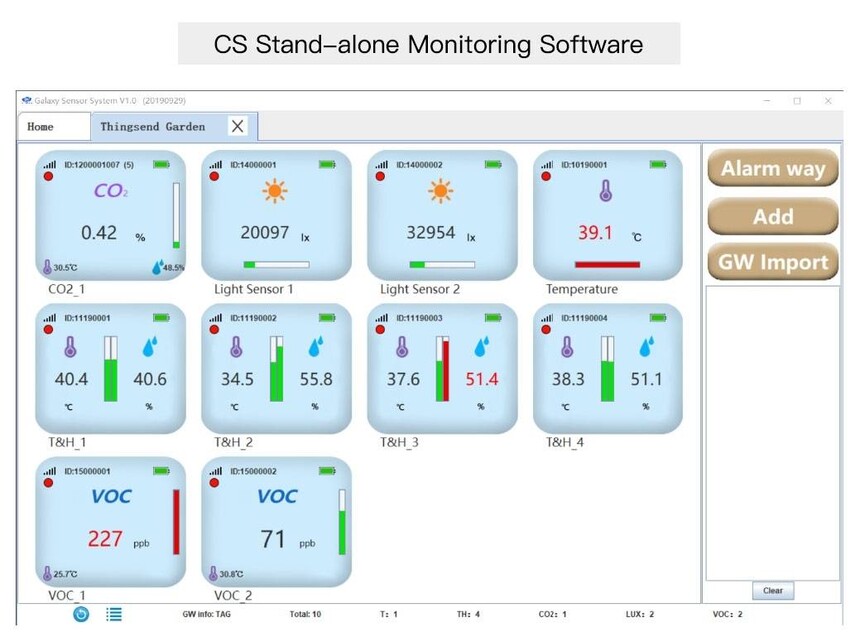

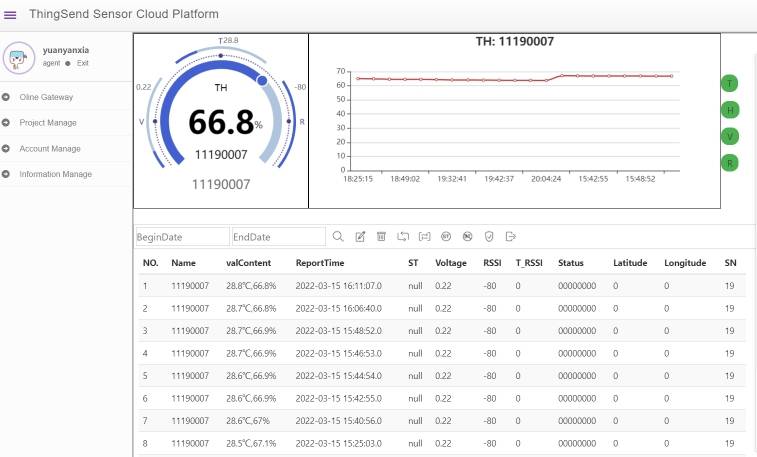

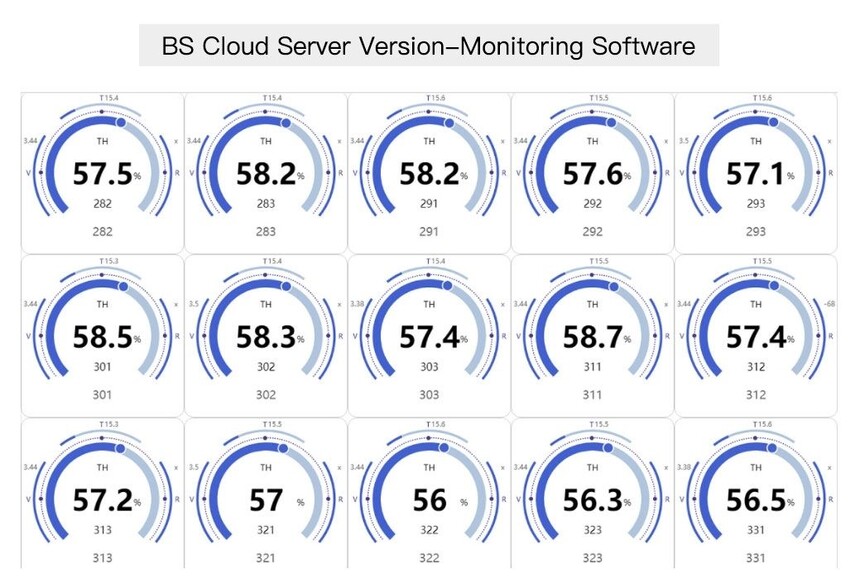

Software &Cloud Server for Remote Monitoring We provide free software and cloud server for remote monitoring,and we can also provide protocols for customers to build their own platform.
Usemanual Download XZ-DS01-TP2C-1 RV10.pdf The sensor needs to be configured with a gateway(concentrator). You can select one type of them as required. （XZ-DSG1） （XZ-DSG2） （XZ-DSG4） （XZ-DSG-MUS） ●constant temperature and humidity production workshop ●storage and transportation ●cold storage and cold-chain transportation ●medical and health care ●environmental and meteorological monitoring ●energy and chemical industry
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
