XZ-DS02-TH2A
收藏

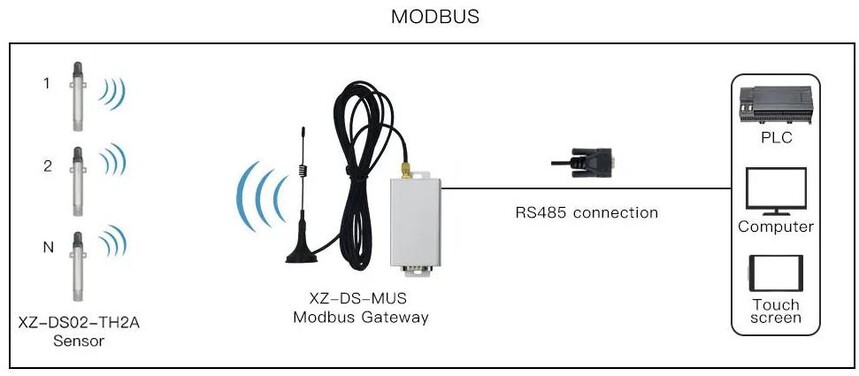

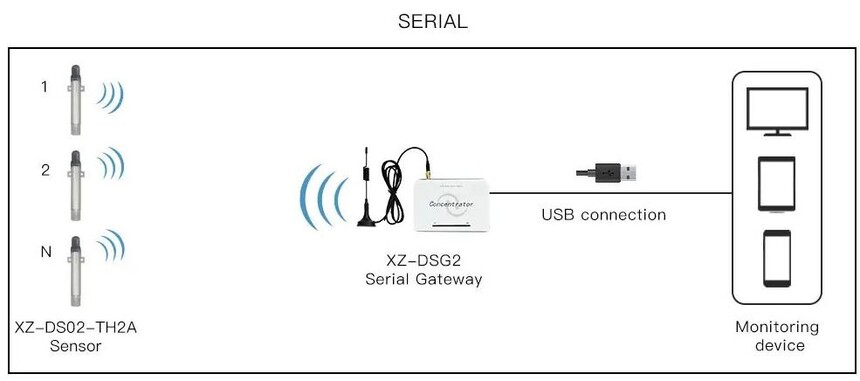

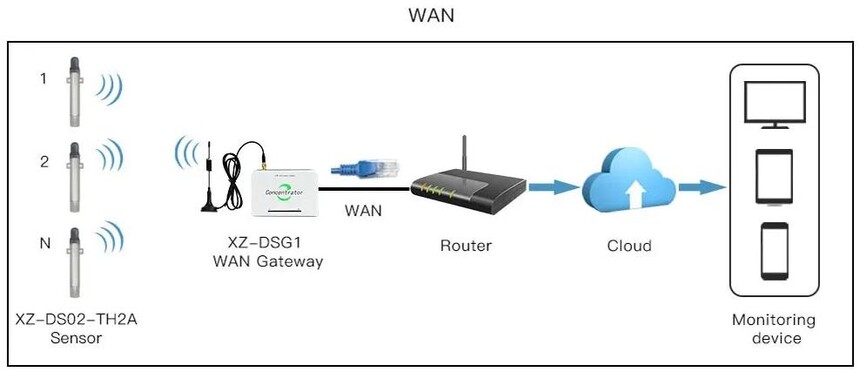

XZ-DS02-TH2A is a lora wireless temperature humidity measuring instrument.It consists of temperature and humidity sensor, signal processing circuit, lora communication module and battery.Working with our wireless gateway can realize remote temperature and humidity data acquisition. Wireless gateway sends data to a third party data acquisition equipment by using USB serial/RJ45 Network/4G/RS485 Modbus way, each gateway can work with more than 100pcs sensors(Modbus gateway can work with 30pcs sensors). XZ-DS02-TH2A Main application scenarios: smart factory, smart construction site, etc. XZ-DS02-TH2A Working Process XZ-DS02-TH2A switches to different modes according to using way： Sleeping mode：Sensor no work, no transmission, and sleeping with low consumption Starting mode：Light sensing triggering， Trigger 3 times continuously within 10S，after triggering successfully at the 3rd time red light fast blinks 3 times, it means starting successfully. （Triggering way: hand holds light-sensitive part 1～2S，loosen and red light blinks once） Notice：please don’t trigger it in dark light, instead using lens hood under hard light Triggering mode：trigger once，detect sensor and send signal, transmission interval of sensor can be set by user. Normal Mode：periodically detect sensor and send signal
Specification
Software &Cloud Server for Remote Monitoring We provide free software and cloud server for remote monitoring,and we can also provide protocols for customers to build their own platform.
Usemanual download XZ-DS01-TH2A RV10.pdf The sensor needs to be configured with a gateway(concentrator). You can select one type of them as required. （XZ-DSG1） （XZ-DSG2） （XZ-DSG4） （XZ-DSG-MUS） ● environmental and meteorological monitoring ● medical and health care ● refrigerator freezer and cold chain ● storage and transportation ● Main application scenarios: smart factory, smart construction site, etc
|
||||||||||||||
