XZ-DS01-TH2C

进入
收藏
  • Discription
  • Select one Gateway
  • Application

TH2C lora wireless temperature humidity sensor is a wireless temperature humidity measuring instrument with 3.2" LCD diplay,and it can be made with probe.

Based on Lora transmission, which can achieve full signal coverage of a medium-sized community ora hospital. Working with our wireless gateway can realize remote

temperature and humidity data acquisition. We provide free software and cloud server for remote data monitoring.Wireless gateway sends data to a third party data

acquisition equipment by using USB serial/Network/4G/RS485 Modbus way, each gateway can work with more than 100pcs sensors.


XZ-DS01-TH2C-L suitable used in intelligent buildings, indoor heating, museums, libraries, schools.

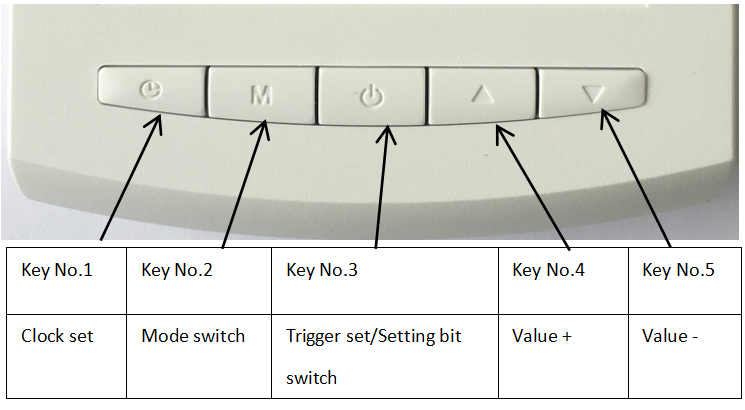

  Key Setting Function



Key-setting function Instruction


Key

Definition

Description

Key No.3

Trigger set/setting bit switch

After power-up, short press this key to enter setup mode, LCD backlight will light up. If no other key is pressed within 4 seconds, it will automatically exit the setting mode and trigger the wireless data transmission. In setting the alarm threshold mode, pressing this key will switch the high and low bits of the value. In the clock setting mode, the clock's minutes and seconds can be switched and the threshold value can be

quickly set.

Key No.2

Mode switch

In the setting mode, short press the key will cycle into following setting scenario: the upper temperature threshold, the lower temperature threshold, the temperature alarm back-off value, the humidity upper threshold, the humidity lower threshold, and the humidity alarm back-off value. In any of these scenarios, various thresholds can be quickly set by

pressing key No. 3, No. 4 and No.5

Key No.4

Value +

Temperature plus/minus sign bit/ increment of selected value(0~9)

Key No. 5

Value -

Temperature plus/minus sign bit/decrement of selected value(0~9)

Key No. 1

Clock set

In the setting mode, enter the clock setting function, the clock is 24 hours




                                                                                             temperature upper threshold       temperature upper threshold   temperature rollback threshold




    humidity upper threshold               humidity upper threshold           humidity rollback threshold



  Specification


General Parameters
Transmitting Power:<17dBm
Transmission Distance: >5KM(L OS)
Sensitivity:<  -136dBm
Average power consumption:< 15uA
Transmitting Current :<120mA
Battery Life:1.5 years@2000mAH
Receiving Current:< 20mA
Power supply:3pcs AA Li-SOCI2 battery (replaceable but not included)
Operating Temperature:-40°C~80°C
Working Frequency:868MHz (433/915mhz frequency can be customized)
Sensor Parameters
Temperature Accuracy:<±0.3℃(0℃~65℃)& < ±1℃(<40℃,>65℃)
Humidity Accuracy:< ±3% (10% -90%) & < ±4.5% (<10%, >90%)
Transmission Interval:5mins default, 1 ~ 240mins settable by user

Software &Cloud Server for Remote Monitoring

We provide free software and cloud server for remote monitoring,and we can also provide protocols for customers to build their own platform.








   Usemanual Download  XZ-DS01-TH2C   RV10.pdf


The sensor needs to be configured with a gateway(concentrator). You can select one type of them as required.

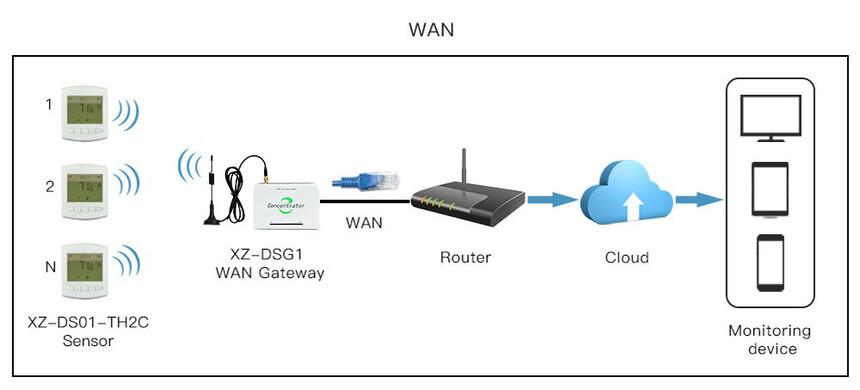

(XZ-DSG1)TH2C WAN.jpg

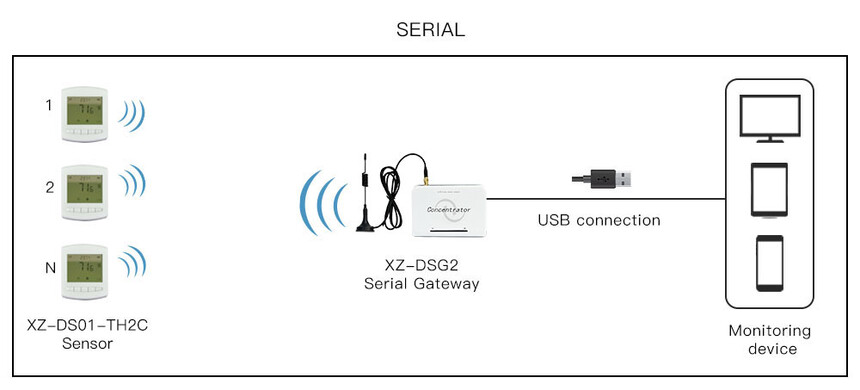

(XZ-DSG2)TH2C Serial.jpg

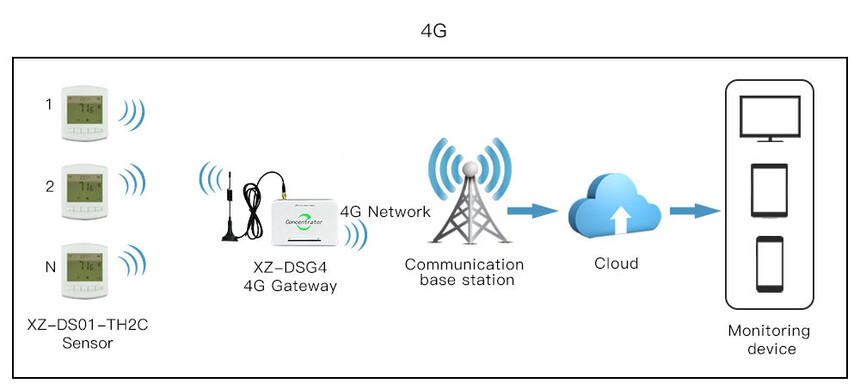

(XZ-DSG4)TH2C 4G.jpg

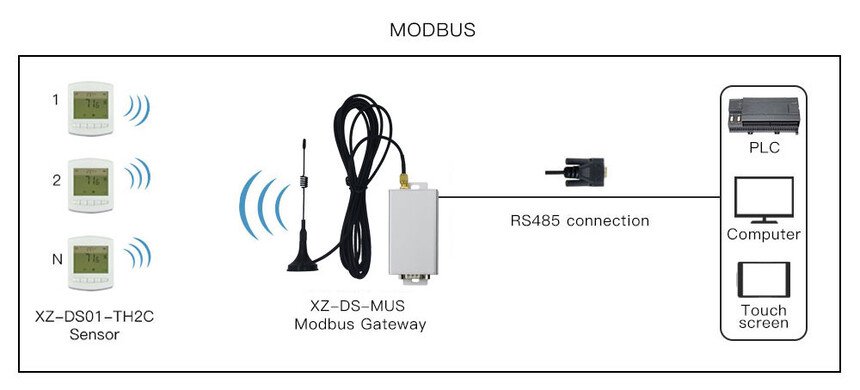

(XZ-DSG-MUS)TH2C MUS.jpg





● environmental and meteorological monitoring      ● medical and health care

● incubator and medicine cabinet                              ● storage and transportation

● refrigerator freezer and cold chain

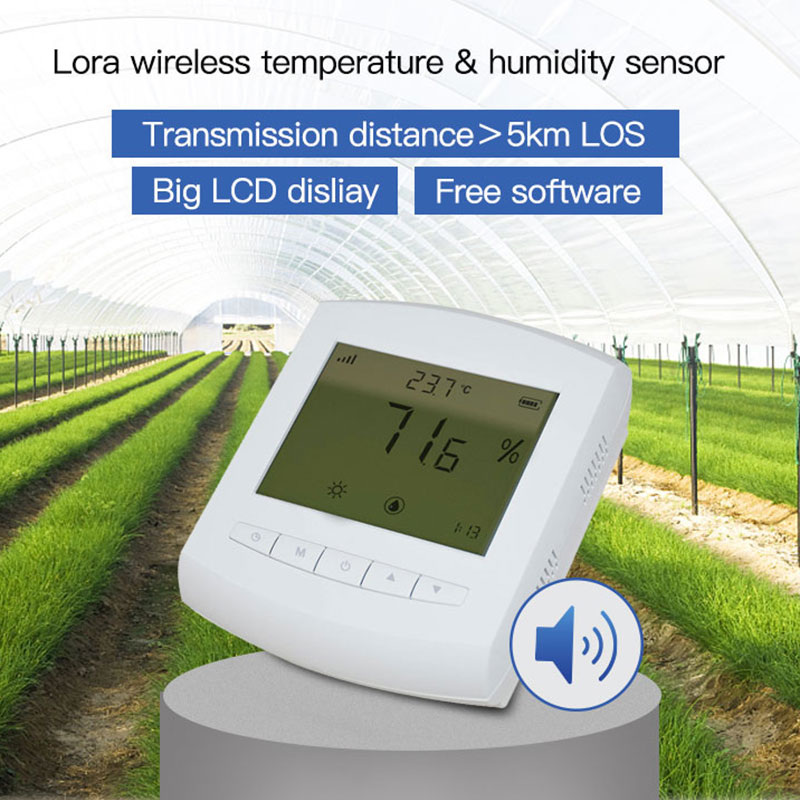

1698659144285181.jpg        1698659145340990.jpg

1698659146768276.jpg          1698659147341530.jpg
