  • Discription
  • Topology
  • Application

“Temperature(T)” and “Humidity(H)” are important parameters of the environment, and the two have an inseparable relationship. According to research, when the room temperature reaches 18℃, the relative Humidity should be maintained at 30-40%, when the room temperature reaches 25℃ the relative Humidity should be maintained at 40-50% is the most appropriate, people can use a variety of methods to adjust the indoor temperature and Humidity due to different seasons climate. And breeding, livestock in the appropriate temperature and Humidity, in order to grow faster, we can obtain greater benefits. Warehouse, logistics also need to understand the specific changes in temperature and Humidity in real time, and what kind of environment is more suitable for goods. Therefor, it is crucial to do a good job in monitoring temperature and Humidity. XZ-GSG-TH2C is a wireless sensor for measuring temperature and humidity. Based on 4G transmission. The product integrates temperature, humidity monitoring, battery and wireless communication, and uses Internet of Things technology to send data to the user platform. And we support TPC/ MOTT protocol.


 Display instroduction


 Sepcification



XZ-GSG-TH2C

Temperature range

-40~80℃

Temperature accuracy

<±0.3℃(0~65℃)& <±1℃(<0℃,>65℃)

Humidity range

0~100%

Humidity accuracy

<±3%(10~90%)& >±4.5%(<10%,>90%)

Detection cycle

1-240mins

IoT report cycle

1-240mins

Power supply

12months@1min(2000mAH,3pcs AA replaceable Li-batter

Operation life: one detection per min,report every 4 hours3pcs AA Li-battery for one year.

Transmitting power

<23dBm

Receiver accuracy

<-100dBm

Transmitting current

<300mA

Receiver current

<100mA

Transmitting distance

Unlimited

Working temperature

-40~80℃

IoT

Cat1

Working frequency

4G

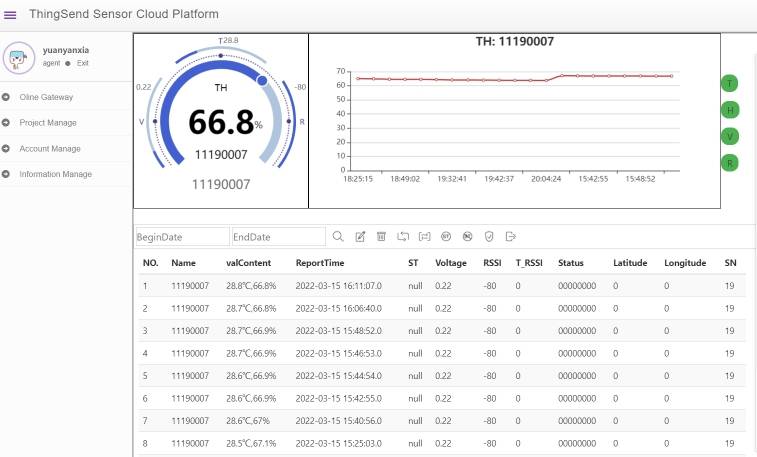

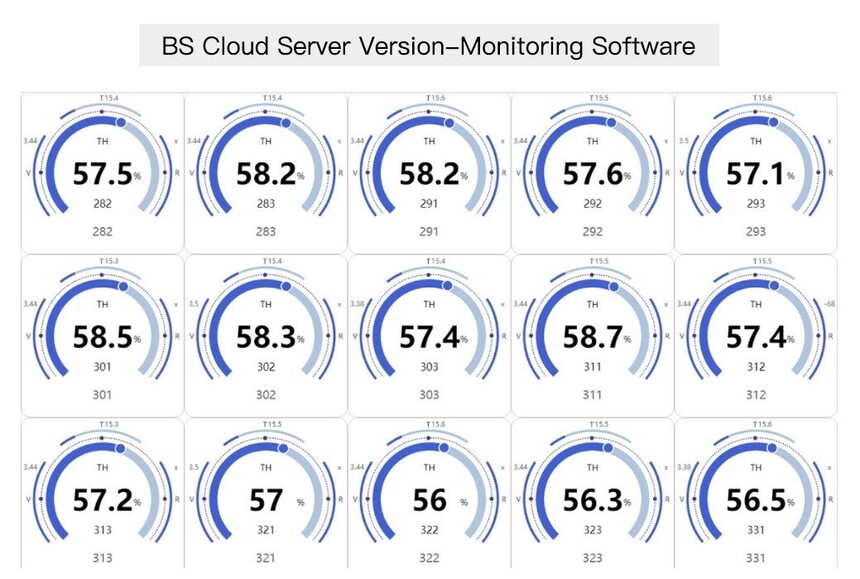

Software &Cloud Server for Remote Monitoring

We provide free software and cloud server for remote monitoring,and we can also provide protocols for customers to build their own platform.





















           Usemanual Download: XZ-GSG-TH2C








Sensor data transmission topology


 energy and chemical industry                production workshop

 storage and transportation                    medical and health care

● Industrial sites and other fields              refrigeration and cold chain

● environmental and meteorological monitoring
